Products by MK Electric

Type of Product :

                          Counter

Market in Brand :

                         Fuji,  Autonics, Omren, Selec,Multispan, Delta,

The Pulse Counter is very useful to use with the Value Cross Detection algorithm. For an application in which you need to monitor the number of value-crossings (zero-cross counter) during a specified time the two blocks together can help achieve this. The following image uses a sine toneinput, on/off switches, Pulse Counter, Readback cell, and GPIO outp

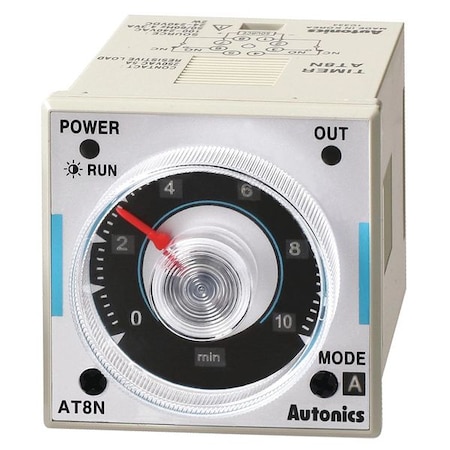

Type of Product :

                          Timmer

Market in Brand :

                         Fuji,  Autonics, Omren, Selec,Multispan, Delta

Telecommunications:

In telecommunications, PWM is a form of signal modulation where the widths of the pulses correspond to specific data values encoded at one end and decoded at the other.

Pulses of various lengths (the information itself) will be sent at regular intervals (the carrier frequency of the modulation).

          _      _      _      _      _      _      _      _
         | |    | |    | |    | |    | |    | |    | |    | |
Clock    | |    | |    | |    | |    | |    | |    | |    | |
       __| |____| |____| |____| |____| |____| |____| |____| |____

                 _      __     ____          ____   _
PWM signal      | |    |  |   |    |        |    | | |
                | |    |  |   |    |        |    | | |
       _________| |____|  |___|    |________|    |_| |___________

Data       0     1       2      4      0      4     1      0



Type of Product :

                          Temperature Controller



Market in Brand :

                         Fuji,  Autonics, Omren, Selec,Multispan, Delta,



The controller would then send a signal to increase the applied heat to raise the temperature back to the setpoint of 68°. ... However, once the temperaturereaches 67°, the heater will again kick in. Unlike ON/OFF control, PID control determines the exact output value required to maintain the desired

Temperature Controller

Type of Product :

                          Timmer

Market in Brand :

                         Fuji,  Autonics, Omren, Selec,Multispan, Delta

tachometer (revolution-countertachrev-counterRPM gauge) is an instrument measuring the rotation speed of a shaftor disk, as in a motor or other machine.[1] The device usually displays the revolutions per minute (RPM) on a calibrated analogue dial, but digital displays are increasingly common. The word comes from Greek ταχος (tachos "speed") and metron("measure"). Essentially the words tachometer and speedometer have identical meaning: a device that measures speed. It is by arbitrary convention that in the automotive world one is used for engine and the other for vehicle speed. In formal engineering nomenclature, more precise terms are used to distinguish the two.

Type of Product :

                          solid-state relay

Market in Brand :

                         Crydom, Autonics, Omren, Ideal

solid-state relay (SSR) is an electronic switching device that switches on or off when a small external voltage is applied across its control terminals. SSRs consist of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and a coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC to the load. It serves the same function as an electromechanical relay, but has no moving parts.

Packaged solid-state relays use power semiconductor devices such as thyristors and transistors, to switch currents up to around a hundred amperes. Solid-state relays have fast switching speeds compared with electromechanical relays, and have no physical contacts to wear out. Application of solid-state relays must consider their lower ability to withstand momentary overload, compared with electromechanical contacts, and their higher "on" state resistance. Unlike an electromechanical relay, a solid-state relay provides only limited switching arrangements (SPST switching).

Type of Product :

                          switched-mode power supply

Market in Brand :

                         Mean well ,Omren, Ideal, Schneider, Phonix, Rockwell,

switched-mode power supply ( SMPS, or switcher) is an electronic power supply that incorporates a switching regulator to convert electrical power efficiently. Like other power supplies, an SMPS transfers power from a DC or AC source (often mains power) to DC loads, such as a personal computer, while converting voltage and current characteristics. Unlike a linear power supply, the pass transistor of a switching-mode supply continually switches between low-dissipation, full-on and full-off states, and spends very little time in the high dissipation transitions, which minimizes wasted energy. Ideally, a switched-mode power supply dissipates no power. Voltage regulation is achieved by varying the ratio of on-to-off time. In contrast, a linear power supply regulates the output voltage by continually dissipating power in the pass transistor. This higher power conversion efficiency is an important advantage of a switched-mode power supply. Switched-mode power supplies may also be substantially smaller and lighter than a linear supply due to the smaller transformer size and weight.

Switching regulators are used as replacements for linear regulators when higher efficiency, smaller size or lighter weight are required. They are, however, more complicated; their switching currents can cause electrical noise problems if not carefully suppressed, and simple designs may have a poor power factor.

Type of Product :

                          Penal Meter

Market in Brand :

                         Schneider, VKE, Selec, Autonics

panel meter is an instrument that displays an input signal in either a digital or analog form. Many panel meters also include alarm options as well as the ability to connect and transfer data to a computer.

Type of Product :

                          Program Logic Relay Module

Market in Brand :

                         Phoenix

  • Versatile, thanks to industrial relays with numerous functions
  • Always the right solution – thanks to world-leading product variety
  • Space-saving, thanks to compact, slim design
  • Excellent quality, thanks to high-grade materials and innovative technologies
  • Save costs: standardized accessories that are available worldwide
Type of Product :
                          Sensor Controller
Market in Brand :
                           Autonics

The Sensor Controller is used with items from the ccSensorsmod. Also called a "Computer Peripheral Block", it provides a central collection point for the remote sensors readings.

To use it, place this block directly next to a Console, and enter the command: /ccSensors/console into the console (Computer Craft Computer) itself. If there are any Sensors that are transmitting on the same frequency as that controller, it'll receive data from those sensors. With the above command, you can obtain readings from those sensors.

Go to ccSensors for information on how to use this with other ccSensors blocks and items.


Type of Product
                           Water Level Controller
Market in Brand :
                           Minilec

water level is a device used for matching elevations of locations that are too far apart for a spirit level to span. The simplest water level is a section of clear tubing, partially filled with water. Water is easily procured for use, and easily discarded after use. The ends are held vertical, and the rest of the tubing lies on the ground or floor. The water level at each end of the tube will be at the same elevation, whether the two ends are adjacent or far apart.[1] Water levels have been used for many years. The water level is lower-tech than the laser level, but it can be more accurate over long distances. To avoid error, all of the water should be at the same temperature. Other sources of error include difficulty reading due to meniscus.

If the water level is used often, dye can be added to the water to make it easier to see. If the water level is used outdoors in winter, antifreeze can be added to the water.

Automotive window washer fluid can also be used for antifreeze and increased visibility. Additionally it inhibits the formation of error causing bubbles.

All Type paper board machine Ericssion and PLC, Hmi ,Servo , AC Drive, Enocder, sensor,  Installsion & Servies

For any questions Get in Touch
